iCHAIR XXL 1.614


iCHAIR XXL

Reinforced components ensure great stability

iCHAIR XXL

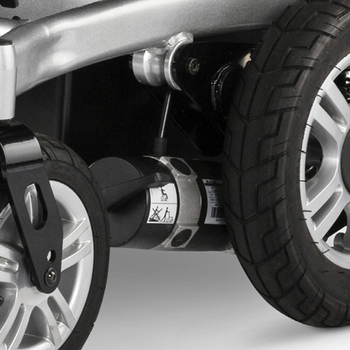

Powerful motor

iCHAIR XXL

Tilt-in-space

iCHAIR XXL

Long-life LED light

Seat width 530 - 700
Seat depth 430 - 600
Back rest height 530 - 570
Shank lenght 370 - 510
Arm support height 170 - 280
Front seat height (with / without
cushion)
460 - 560 / 530 - 630
Length with footrests 1,150
Length without footrests 850
Width ready to go 670
Height without headrest 1,020 - 1,150
Transport dim. width 710 - 760
Transport dim. length 850
Transport dim. height min. 650
Front wheel size 260 x 70 (10“)
Rear wheel size 350 x 75 (14“)
Max. obstacle height max. 60
Turning radius 950
Reichweite mit Batterie 63 Ah (5h), 73 Ah (20h) max. 6) 30 - 35
Empty transport weight min. 130
Client weight max. 160 - 200
Permitted overall weight 340
Additional loading max. 10
Driving speeds 6 /10
Motor performance 2 x 300 / 2 x 350
Driving range max. 35
Permitted gradient 13 %
Type of steering indirect
Electric lift 300
Electric tilt-in-space 0° - +18°
Mechanical tilt-in-space 0° - +10°
Back angle electric -10° - +50°
Back angle mechanical -10° - +30°

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
